We have launched T3000 skySuite

A new generation of avionics technology

* Suitable for Light Sports and Experimental Aircraft

Experience the future of aviation technology with the T3000 skySuite, our state-of-the-art avionics system. Engineered with a modular design, the T3000 skySuite seamlessly integrates essential functionalities, to elevate your flying experience including:

VHF Nav Comms
Navigation Sensors
Mode S Transponder (Due 1st Quarter of 2025)
3.1″ Instrument Displays (2.1” active touch screen) .
16 pilot-selectable instrument 'faces'
Digital intercom for up to 10 people
Pre-wired headphone plates
USB-C 15W power outlet at each seat
Designed and manufactured in Australia.
Extended warranty on upgraded parts.

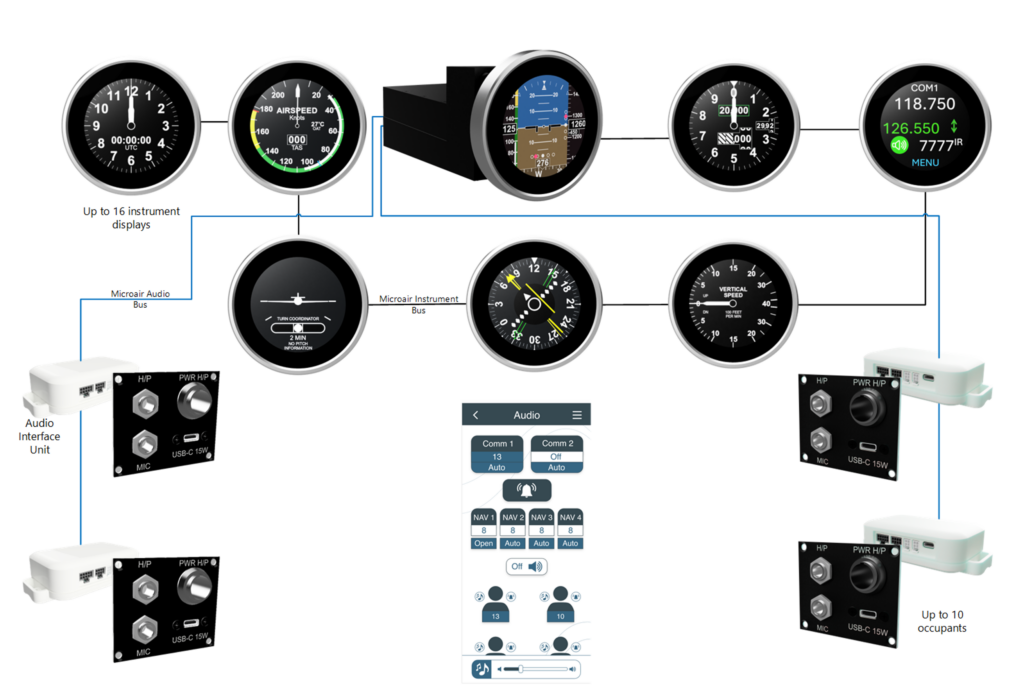

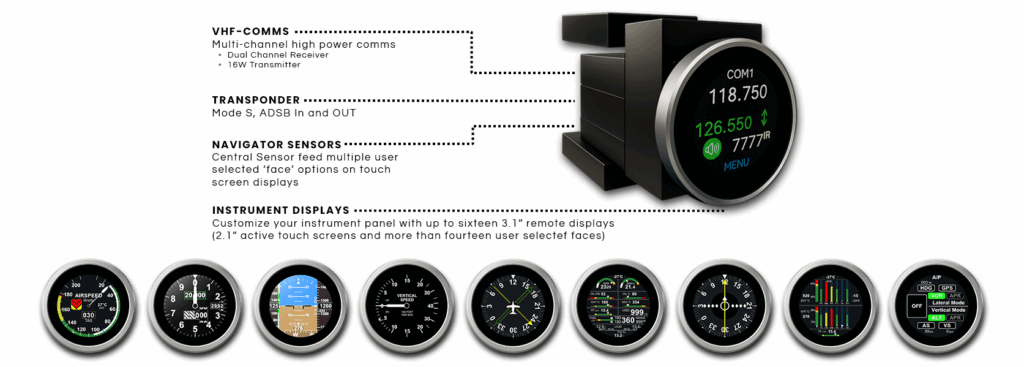

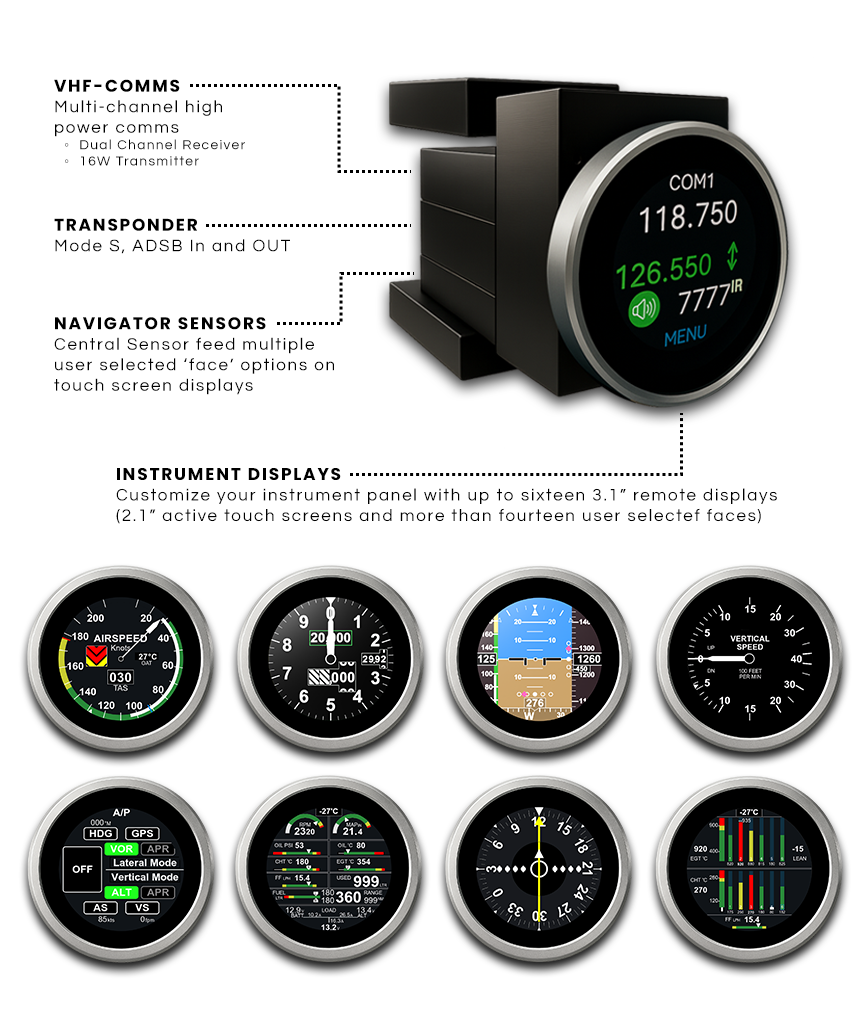

The T3000 skySuite is a modular system designed to enhance the flying experience of Light Sports and General aviation pilots, with its advanced, integrated components. The suite includes the T3000 NavLink for navigation sensor modules, the T3000 AirWave VHF Radio, and the T3000 SkyLink transponder. Each module is engineered with cutting-edge technology, ensuring superior performance, reliability, and customization options for pilots.

VHF Nav Comms
Navigation Sensors
Mode S Transponder*
3.1″ Instrument Displays (2.1” active touch screen) .
10 pilot-selectable instrument faces
Digital intercom for up to 10 people
Pre-wired headphone plates
USB-C 15W power outlet at each seat
Designed and manufactured in Australia.
Extended warranty on upgraded parts.

T300 skySuite Modular Systems

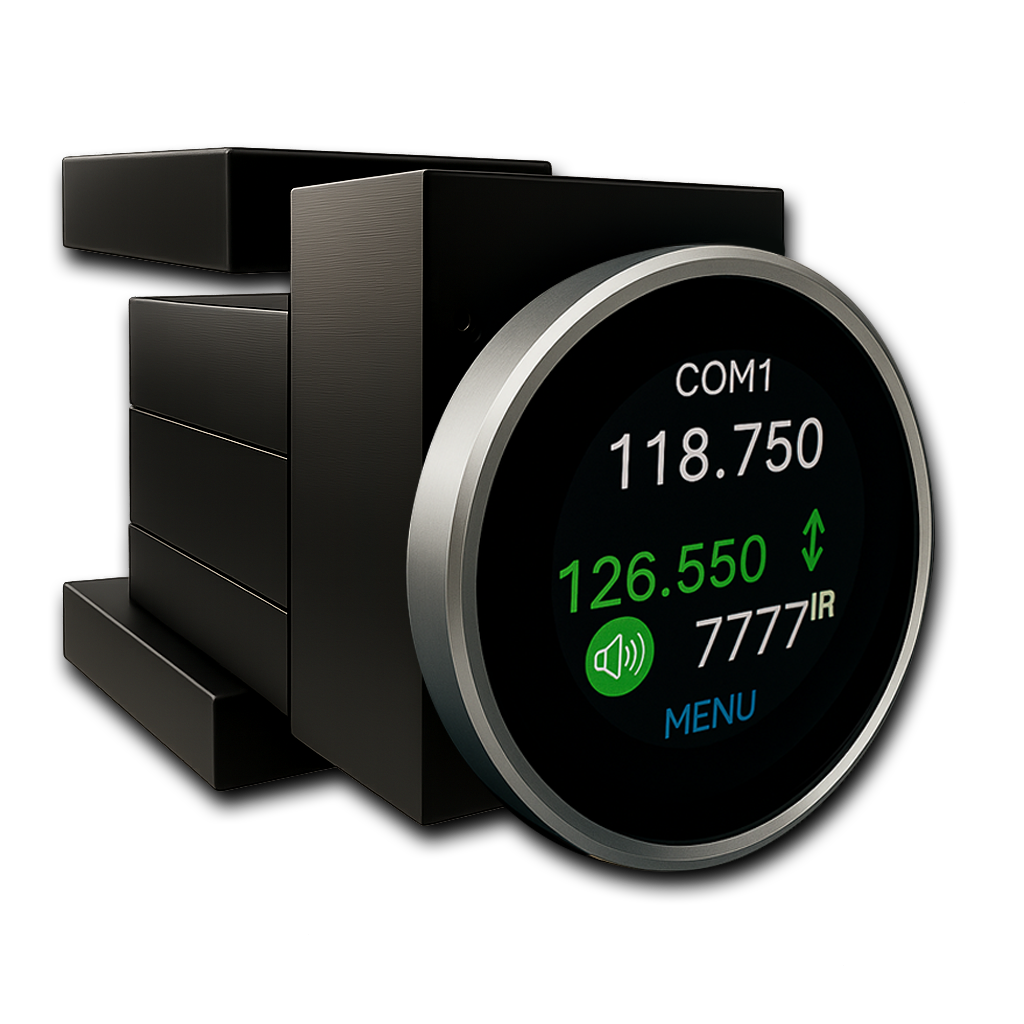

T3000 skyWave Nav Comm (Radio)
– 8.33kHz/25kHz
– Selectable 6, 10, 16W TX power
– Dual Channel Comms Receiver
– 16W Transmitter
– Dual VOR
– ILS with Marker

T3000 skyNAV (Navigation Sensors):
-GNSS
-Air Data (300kts, 30,000ft)
-OAT
-AHRS
-Multiple user selected face options available

T3000 skyLink (Transponder*):
-Mode S
-ADSB In and Out
-ADSB Diversity Out
-Available January 2025

Instrument Displays :
(multiple user selected ‘faces’):
– 3.1” Display with 2.1” active touch screen
– More than 14 x pilot selectable instrument ‘faces’
– Integrated or remote option

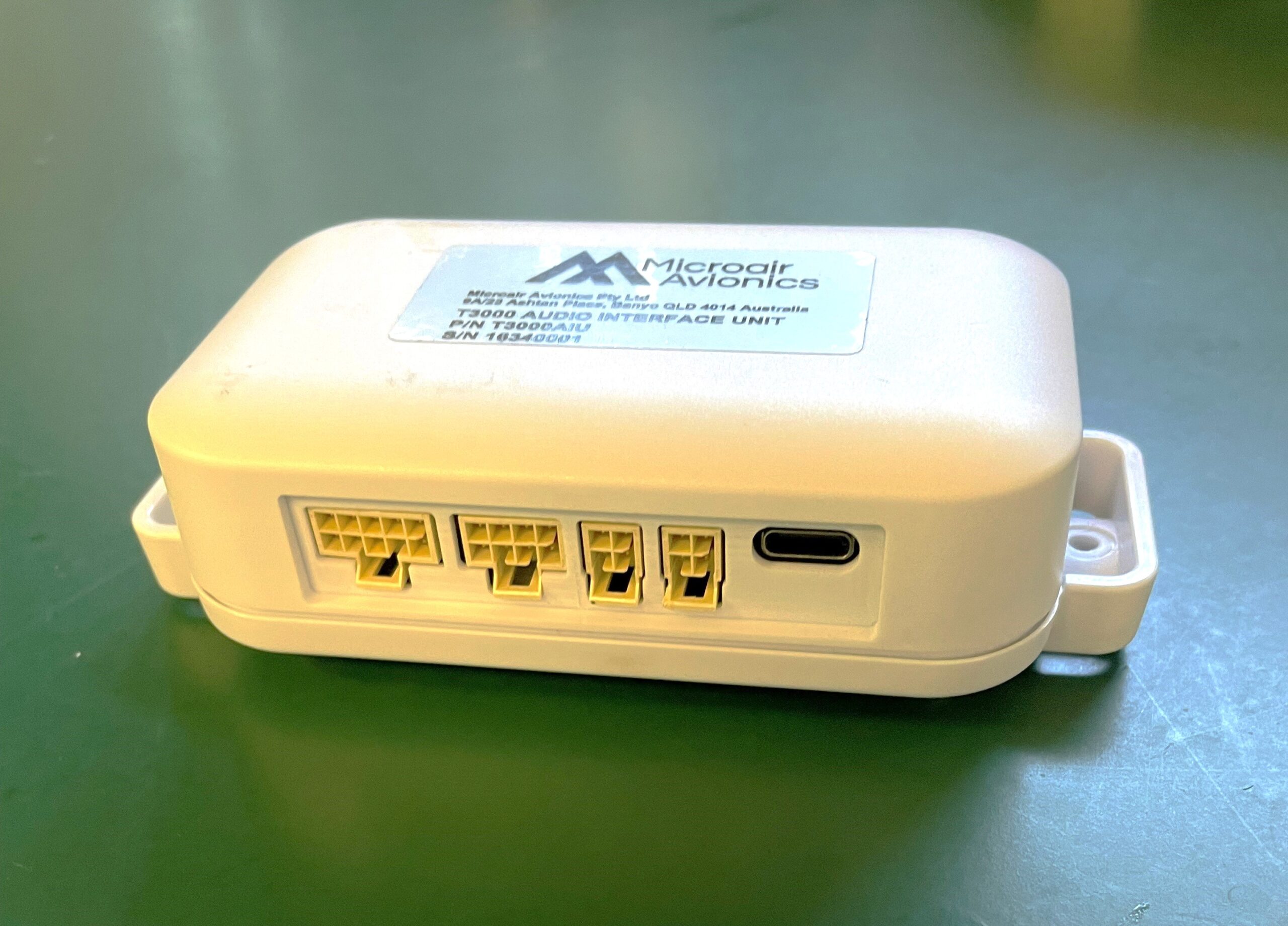

Audio Interface Units (AIU):
-Digital audio
-Individual control of all audio sources
-USB-C Power (15W)
-Digital intercom for up to 10 x occupants
-Options for GA, LEMO and other connectors

Accessories
-Audio Bus Harness
-Instrument Bus Harness

T300 skySuite Modular Systems

T3000 skyWave Nav Comm (Radio)
– 8.33kHz/25kHz
– Selectable 6, 10, 16W TX power
– Dual Channel Comms Receiver
– 16W Transmitter
– Dual VOR
– ILS with Marker

T3000 skyNAV (Navigation Sensors):
-GNSS
-Air Data (300kts, 30,000ft)
-OAT
-AHRS
-Multiple user selected face options available

T3000 skyLink (Transponder*):
-Mode S
-ADSB In and Out
-ADSB Diversity Out
*Available Q1 of 2025

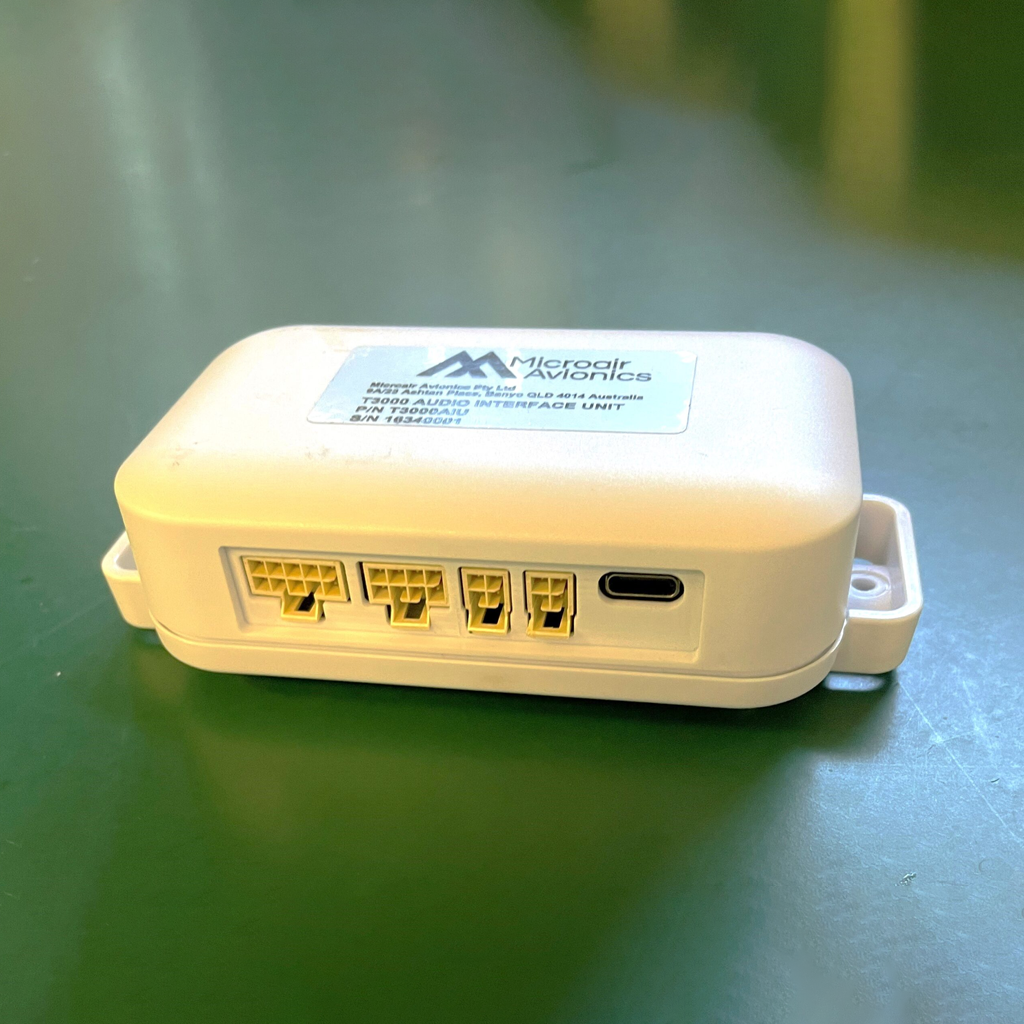

Audio Interface Units (AIU):
-Digital audio
-Individual control of all audio sources
-USB-C Power (15W)
-Digital intercom for up to 10 x occupants
-Options for GA, LEMO and other connectors
